agroNave 7 navigation

Manual GNSS guidance

Manual GNSS guidance system that, paired with the ANR20 smart antenna, assists the operator in maintaining guidance lines by means of an on-screen lightbar. It integrates with various agricultural machines and implements and is also available with ISOBUS functionality.

Positioning and hardware

• Receiver: ANR20 smart antenna with terrain compensation.

• GNSS frequency: L1

• Constellations: GPS, GLONASS,BeiDou (BDS) and Galileo.

• Signal correction: SBAS

• Absolute accuracy: 1.5 m;up to 0.6 m with SBAS.

• Pass-to-pass (P2P) accuracy: 0.3 m

• 7” touchscreen monitor, adjustable toportrait or landscape orientation.

• Protection rating: IP67

Operating functions

• Manual guidance with on-screen lightbar.

• Guidance patterns: straight line, curved line, pivot, adaptive line and project-based paths.

• Display and management of field boundaries.

• Measurement of perimeter, treated area and working time.

• Storage and export of work data via USB or direct remote connection (Wi-Fi, SIM).

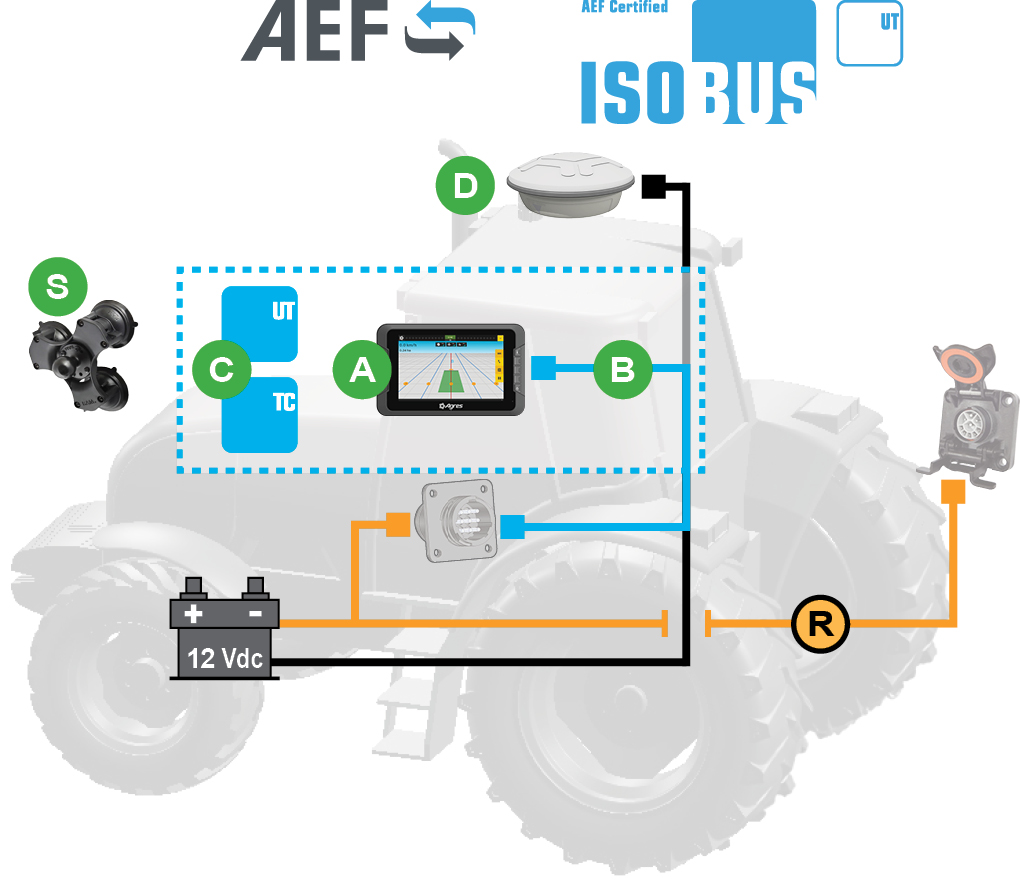

• ISOBUS Virtual Terminal (TC, UT), dedicated version only.

Applications

• Spraying

• Fertilization

• Other broadacre operations
