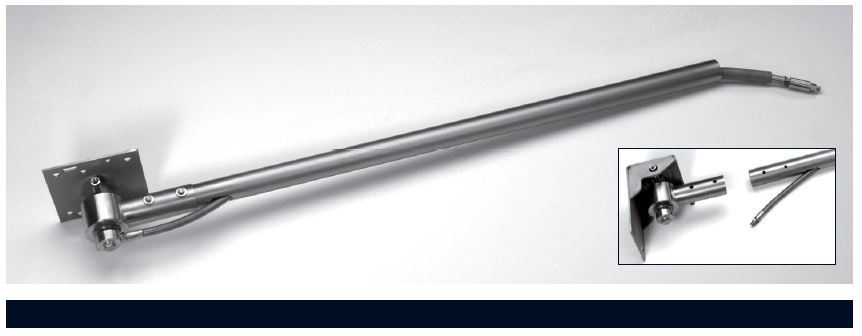

BRACCIO RIGIDO
Articolo da abbinare alle staffe "A" - "B" - "C" - "D"
Tubi flessibili ad alta resistenza chimica
PRESSIONE NOMINALE
220 bar
22 MPa
3200 psi
PRESSIONE AMMISSIBILE
250 bar
25 MPa
3625 psi
PORTATA NOMINALE
45 l/min
12 USGpm
TEMPERATURA NOMINALE
90 °C
194 °F
Zoom
Caratteristiche
P/N
Entrata
Uscita
Lunghezza

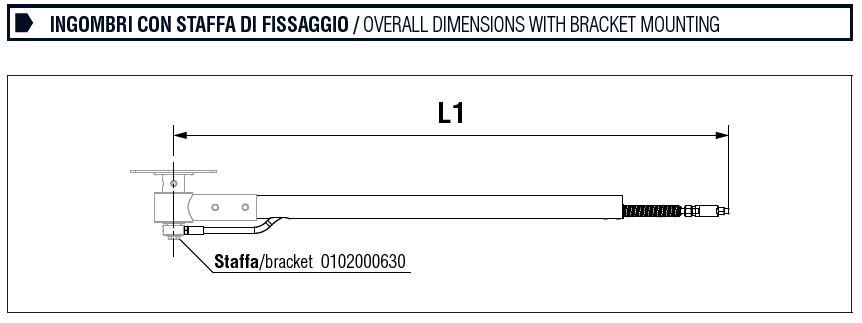

L1
Peso
Pz
Kit ricambio tubo
Pz#1
O-ring
mm
in
mm
in
kg
oz
4150200007
G 1/4 M
SWIVEL G 1/4 M
1200
47
1290
50.8
4.3
150.8
1
4159900003
1
4150200008
G 1/4 M
SWIVEL G 1/4 M
1600
63
1690
66.5
5.4
190
1
4159900004
1
4150200009
G 1/4 M
SWIVEL G 1/4 M
1750
69
1840
72.4
5.8
205.6
1
4159900005
1
4150200010
G 1/4 M
SWIVEL G 1/4 M
2000
79
2090
82.3
6.6
233
1
4159900006
1
4150200011
G 1/4 M
SWIVEL G 1/4 M
2500
99
2590
102
8.1
286.7
1
4159900007
1
4150200012
G 1/4 M
SWIVEL G 1/4 M
3000
118
3000
118.1
9.6
339.3
1
4159900008
1
4150200013
G 1/4 M
SWIVEL G 3/8 F
1600
63
1690
66.5
5,4
190.8
1
4159900004
1
Viton®
4150200014
G 1/4 M
SWIVEL G 1/4 M
1850
73
1940
76.4
6,1
215.0
1
4159900038
1
EPDM
4150200015
G 1/4 M
SWIVEL G 3/8 F
2500
99
2590
102.0
8,1
286.7
1
4159900007
1
Viton®
4150200016
G 1/4 M
SWIVEL G 3/8 F
3000
118
3090
121.6
9,6
338.6
1
4159900008
1
Viton®
4150200017
G 1/4 M
SWIVEL G 1/4 M
1850
73
1940
76.4
6,1
215.0
1
4159900038
1
EPDM
